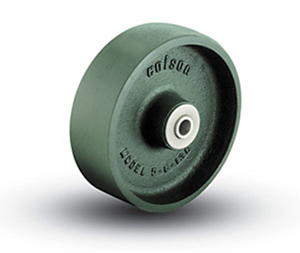

Acero > Series 5 a 8 Ruedas Semi-Acero
Tipos de pisos / Condiciones Operacionales
Las Ruedas SemiAcero deberán ser especificadas cuando se requiere una alta capacidad de carga y la protección a pisos no es necesaria.
Altamente fuertes para soportar impactos con superficies cortantes.
Las Ruedas de SemiAcero no deberán ser recomendadas si el ruido es un problema o si las cargas a transportar son frágiles.
- Rango de Temperatura: -45°F a +180°F. Si se especifican Retenes Metálicos: -45°F a + 500°F (Baleros de rodillos y Bolas solamente).
- Acabado: Esmalte Alquidálaico Verde.
- Graseras: Cuenta con grasera en el centro de manera estándar en las serie 7 y 8 para lubricar su balero.
Opciones:
- Balero Delrin Sin Buje: Especifique "WB01B".
- Balero Delrin de una Pieza con Buje (2" de ancho): Especifique "WB11".
- Balero Delrin de una Pieza Sin Buje(2" de ancho): Especifique "WB11B".
- Balero Metálico de rodillos encapsulados: Especifique "WB29".
- Balero de Rodillos Sin Buje: Especifique "WB09B".
- Balero de Rodillos con retenes Metálicos: Especifique "WSR1".
- Balero Tipo Pedestal Sellado de Bolas de Precisión con Buje integrado: Para ordenar, cambie el 9o. Dígito de su número de modelo por "5" (Ejemplo: 5.00006.135)
Tabla de especificaciones
| Modelo Número | Tipo de rueda | Diámetro exterior | Ancho | Capacidad de Carga (lbs.) | Tipo de Balero | Diámetro interior del balero | Diámetro interior sin balero | Largo del Mamelón | Diametro interior del Buje | Largo del buje | Guardas | Peso (lbs.) |
| 5.00004.131 | Cast Iron (5-8 Series) | 4" | 2" | 1000 | Delrin | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | TG1: 52007.94 | 3-5/8 |
| 5.00004.139 | Cast Iron (5-8 Series) | 4" | 2" | 1000 | Roller | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | TG1: 52007.94 | 3-5/8 |
| 5.00005.131 | Cast Iron (5-8 Series) | 5" | 2" | 1000 | Delrin | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | TG1: 57551.05 | 5-1/8 |
| 5.00005.139 | Cast Iron (5-8 Series) | 5" | 2" | 1000 | Roller | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | TG1: 57551.05 | 5-1/8 |
| 7.00005.161 | Cast Iron (5-8 Series) | 5" | 2-1/2" | 2000 | Delrin | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 8-1/2 | |
| 7.00005.169 | Cast Iron (5-8 Series) | 5" | 2-1/2" | 2000 | Roller | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 8-1/2 | |
| 8.00005.169 | Cast Iron (5-8 Series) | 5" | 2-1/2" | 2000 | Roller | 1-1/4" | 1-15/16" | 3-1/4" | 1" | 3-1/2" | 8-1/2 | |
| 5.00006.131 | Cast Iron (5-8 Series) | 6" | 2" | 1500 | Delrin | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 5-3/4 | |
| 5.00006.139 | Cast Iron (5-8 Series) | 6" | 2" | 1500 | Roller | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 5-3/4 | |
| 6.00006.169 | Cast Iron (5-8 Series) | 6" | 2-1/2" | 1600 | Roller | 3/4" | 1-3/16" | 2-3/4" | 1/2" | 3" | 9 | |
| 7.00006.161 | Cast Iron (5-8 Series) | 6" | 2-1/2" | 2500 | Delrin | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 10-3/4 | |
| 7.00006.169 | Cast Iron (5-8 Series) | 6" | 2-1/2" | 2500 | Roller | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 10-3/4 | |
| 8.00006.169 | Cast Iron (5-8 Series) | 6" | 2-1/2" | 2500 | Roller | 1-1/4" | 1-15/16" | 3-1/4" | 1" | 3-1/2" | 10-3/4 | |
| 5.00008.131 | Cast Iron (5-8 Series) | 8" | 2" | 1500 | Delrin | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 8-1/2 | |
| 5.00008.139 | Cast Iron (5-8 Series) | 8" | 2" | 1500 | Roller | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 8-1/2 | |
| 6.00008.169 | Cast Iron (5-8 Series) | 8" | 2-1/2" | 1600 | Roller | 3/4" | 1-3/16" | 2-3/4" | 1/2" | 3" | 13 | |
| 7.00008.171 | Cast Iron (5-8 Series) | 8" | 3" | 2500 | Delrin | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 17-1/4 | |
| 7.00008.179 | Cast Iron (5-8 Series) | 8" | 3" | 2500 | Roller | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 17-1/4 | |
| 8.00008.179 | Cast Iron (5-8 Series) | 8" | 3" | 2500 | Roller | 1-1/4" | 1-15/16" | 3-1/4" | 1" | 3-9/16" | 17-1/2 | |
| 6.00010.169 | Cast Iron (5-8 Series) | 10" | 2-1/2" | 1600 | Roller | 3/4" | 1-3/16" | 2-3/4" | 3/8" | 3" | 18 | |
| 7.00010.161 | Cast Iron (5-8 Series) | 10" | 2-1/2" | 1600 | Delrin | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 18 | |
| 7.00010.169 | Cast Iron (5-8 Series) | 10" | 2-1/2" | 1600 | Roller | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 18 | |
| 7.00010.171 | Cast Iron (5-8 Series) | 10" | 3" | 2500 | Delrin | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 20-1/2 | |
| 7.00010.179 | Cast Iron (5-8 Series) | 10" | 3" | 3000 | Roller | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 20-1/2 | |
| 8.00010.179 | Cast Iron (5-8 Series) | 10" | 3" | 3000 | Roller | 1-1/4" | 1-15/16" | 3-1/4" | 1" | 3-1/2" | 20-1/2 | |
| 7.00012.171 | Cast Iron (5-8 Series) | 12" | 3" | 2500 | Delrin | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 23-1/2 | |
| 7.00012.179 | Cast Iron (5-8 Series) | 12" | 3" | 3000 | Roller | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 23-1/2 | |
| 8.00012.179 | Cast Iron (5-8 Series) | 12" | 3" | 3000 | Roller | 1-1/4" | 1-15/16" | 3-1/4" | 1" | 3-1/2" | 23-1/2 |
