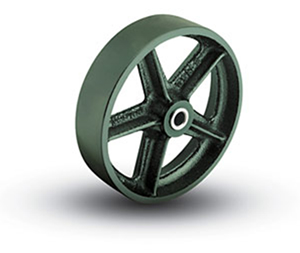

Acero > Ruedas Semi-Acero
Tipos de pisos / Condiciones Operacionales
Las Ruedas SemiAcero deberán ser especificadas cuando se requiere una alta capacidad de carga y la protección a pisos no es necesaria.
Altamente fuertes para soportar impactos con superficies cortantes.
Las Ruedas de SemiAcero no deberán ser recomendadas si el ruido es un problema o si las cargas a transportar son frágiles.
- Rango de Temperatura: -45°F a +180°F. Si se especifican Retenes Metálicos: -45°F a + 500°F (Baleros de rodillos y Bolas solamente).
- Acabado: Esmalte Alquidálaico Verde.
Opciones:
- Balero Delrin Sin Buje: Especifique "WB01B".
- Balero de Rodillos Sin Buje: Especifique "WB09B".
- Balero de Rodillos con retenes Metálicos: Especifique "WSR1".
- Balero Tipo Pedestal Sellado de Bolas de Precisión con Buje integrado: Para ordenar, cambie el 9o. Dígito de su número de modelo por "5" (Ejemplo: 5.00006.835)
Tabla de especificaciones
| Modelo Número | Tipo de rueda | Diámetro exterior | Ancho | Capacidad de Carga (lbs.) | Tipo de Balero | Diámetro interior del balero | Diámetro interior sin balero | Largo del Mamelón | Diametro interior del Buje | Largo del buje | Guardas | Peso (lbs.) |
| 3.00003.109 | Cast Iron ( 2-4 Series) | 3" | 1-1/2" | 425 | Roller | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | TG1: 52250.62 | 2-3/8 |
| 4.00003.111 | Cast Iron ( 2-4 Series) | 3" | 1-1/2" | 425 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 57852.12 | 2-3/8 |
| 4.00003.119 | Cast Iron ( 2-4 Series) | 3" | 1-1/2" | 425 | Roller | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2-3/8 | |
| 2.00003.12 | Cast Iron ( 2-4 Series) | 3-1/2" | 1-1/4" | 300 | Sleeve | 5/8" | 1-15/32" | 3/8" | 1-1/2" | 1-1/2 | ||
| 2.00004.12 | Cast Iron ( 2-4 Series) | 4" | 1-1/4" | 300 | Sleeve | 5/8" | 1-15/32" | 3/8" | 1-1/2" | 2 | ||
| 3.00004.101 | Cast Iron ( 2-4 Series) | 4" | 1-1/2" | 300 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 2-1/2 | |
| 3.00004.109 | Cast Iron ( 2-4 Series) | 4" | 1-1/2" | 500 | Roller | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 2-1/2 | |
| 4.00004.111 | Cast Iron ( 2-4 Series) | 4" | 1-1/2" | 500 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 52007.94 | 2-3/8 |
| 4.00004.119 | Cast Iron ( 2-4 Series) | 4" | 1-1/2" | 500 | Roller | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 52007.94 | 2-3/8 |
| 2.00005.12 | Cast Iron ( 2-4 Series) | 5" | 1-1/4" | 300 | Sleeve | 5/8" | 1-15/32" | 3/8" | 1-1/2" | TG1: 57551.02 | 2-1/4 | |
| 3.00005.101 | Cast Iron ( 2-4 Series) | 5" | 1-1/2" | 300 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | TG1: 52250.56 | 3-1/4 |
| 3.00005.109 | Cast Iron ( 2-4 Series) | 5" | 1-1/2" | 600 | Roller | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | TG1: 52250.56 | 3-1/4 |
| 4.00005.111 | Cast Iron ( 2-4 Series) | 5" | 1-1/2" | 600 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 57551.05 | 3-1/4 |
| 4.00005.119 | Cast Iron ( 2-4 Series) | 5" | 1-1/2" | 600 | Roller | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 57551.05 | 3-1/4 |
| 3.00006.101 | Cast Iron ( 2-4 Series) | 6" | 1-1/2" | 600 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | TG1: 57852.16 | 4 |
| 3.00006.109 | Cast Iron ( 2-4 Series) | 6" | 1-1/2" | 600 | Roller | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | TG1: 57852.16 | 4 |
| 4.00006.111 | Cast Iron ( 2-4 Series) | 6" | 1-1/2" | 600 | Delrin | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 57852.04 | 4 |
| 4.00006.119 | Cast Iron ( 2-4 Series) | 6" | 1-1/2" | 600 | Roller | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | TG1: 57852.04 | 4 |
